AS100

Engineered for enhanced safety in high-energy applications, the Autoro Anti-Spark Switch is designed to prevent large, damaging electrical sparks at the critical moments of connecting and disconnecting power in DC systems up to 84V/100A. It protects battery connectors and downstream electronics from the primary damage caused by arcing, contributing to longer system lifespan and more reliable operation.

Discover the key features that make it a prudent upgrade for high-power applications:

1.High-Capacity Design with Arc Mitigation

• High-Power Rating:
  Reliably handles DC systems up to 84V and 100A continuous current, suitable for demanding applications like electric vehicles and industrial equipment.
• Connection & Disconnection Protection:
  Its core function activates during the instant power is applied or removed, suppressing the major sparks that typically cause contact erosion and oxidation.

2.Robust Design with Dual Control Interface

• Integrated & Extended Control:

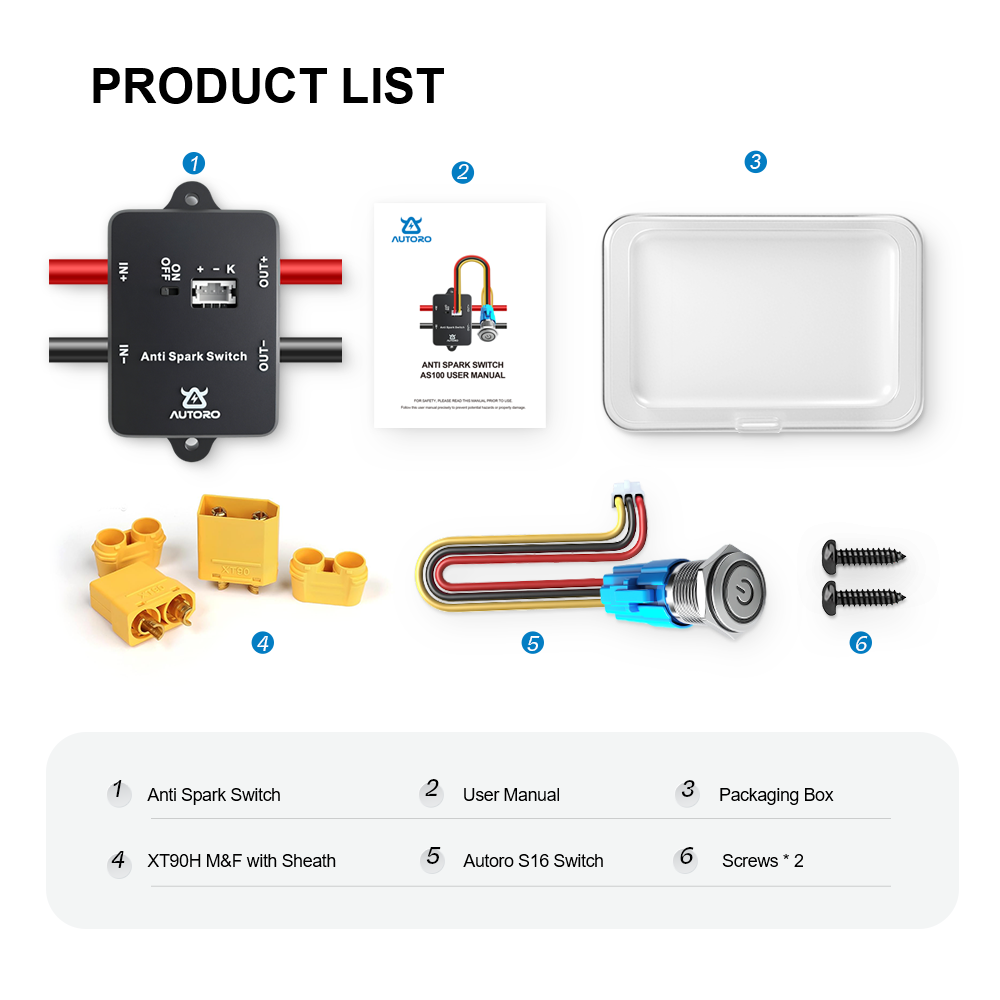

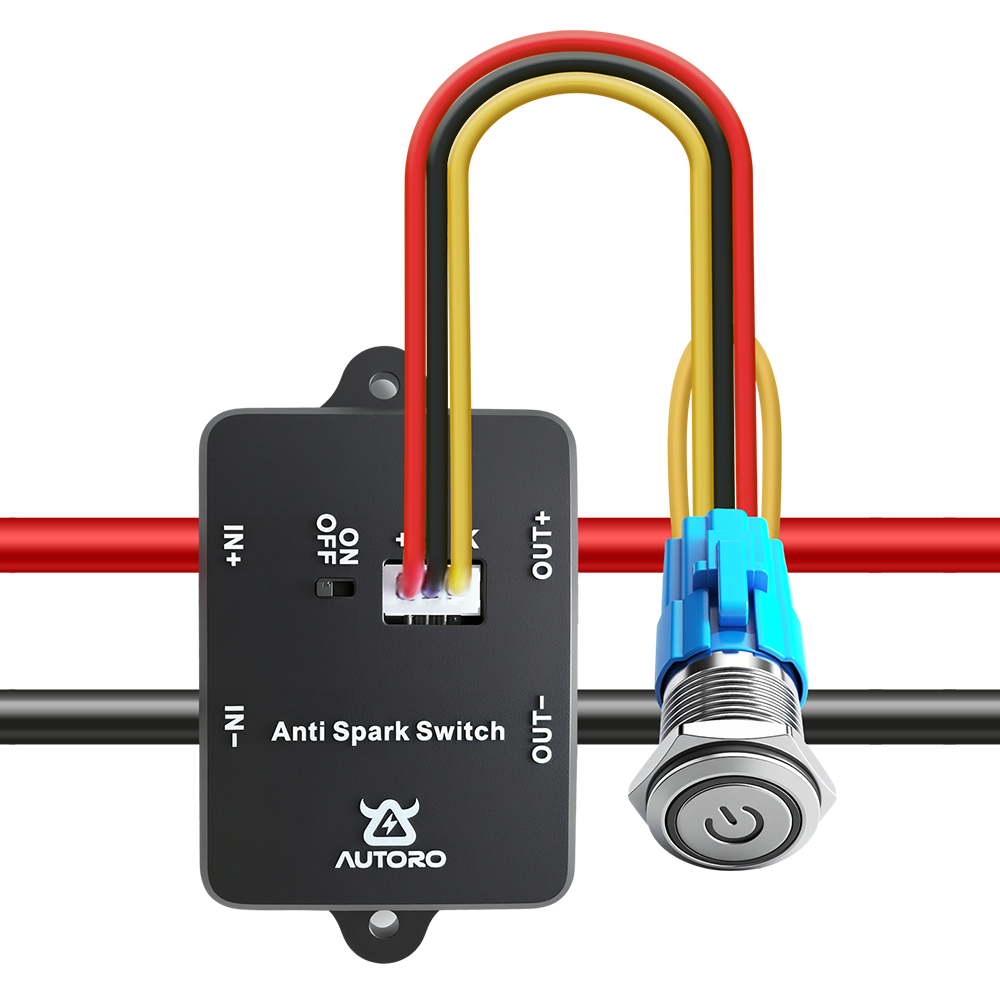

  Features two control methods: a built-in slide switch on the module for direct operation, and a pre-connected Autoro S16 self-locking metal button switch (with a 25cm cable) for convenient, secure control.
• Mandatory Safety Procedure:
  For all operation modes, the unit's main slide switch MUST be in the OFF position before any power connection is made. This is critical for safety and proper function.
• Clear Status & Durability:
  Features an LED power-on indicator and is built to withstand demanding mobile or industrial environments.

3.Two Clear Operating Configurations

• Mode 1 (Direct Slide Switch Control):
  With power disconnected, ensure the slide switch is OFF. Connect battery power, then slide the switch to ON for output.
• Mode 2 (Control via Pre-connected S16 Button):
  With power disconnected and the slide switch in the OFF position. After connecting the battery, press and lock the S16 button to activate the circuit (LED ON); press again to unlock and release to deactivate the circuit (LED OFF).

4.A Guard for Connector & System Longevity

• Reduces Contact Wear:
  By preventing the most damaging sparks, it helps maintain clean, low-resistance connections over time, reducing maintenance needs.
• Proactive Safety Layer:
  An essential component for any serious high-power DC system where protecting investment in batteries and electronics is a priority.

Important Safety & Usage Notes:

• ⚠ HIGH-VOLTAGE HAZARD:
  Always disconnect all power sources before installation or any maintenance work.
• Correct Operation is Critical:
  Failure to set the slide switch to OFF before connecting power may render the anti-spark protection ineffective.
• Troubleshooting:
  If the LED is off when the circuit should be ON, verify input polarity and that the pre-connected S16 button is properly engaged (in Mode 2).
