AESC V6.7 Pro

Engineered for extreme power density and uncompromising reliability in a compact form, the Autoro AESC V6.7 Pro is the intelligent drive core built for the most demanding low-voltage applications. It
leverages the fully customizable, open-source VESC platform, delivering ultimate control and robust power for high-performance electric vehicles, heavy-duty robotics, and other mission-critical innovations.

Pro-Level Upgrades for Unmatched Performance & Safety:

1.Pro Cooling & Extreme Efficiency

• Ultra-Low Resistance Power Stage:
  Equipped with 8 high-current MOSFETs, each with an exceptionally low on-resistance of 0.92 mΩ. This drastically reduces conduction losses and heat generation at the source, enabling higher efficiency and superior continuous power delivery.
• Enhanced Thermal Management System:

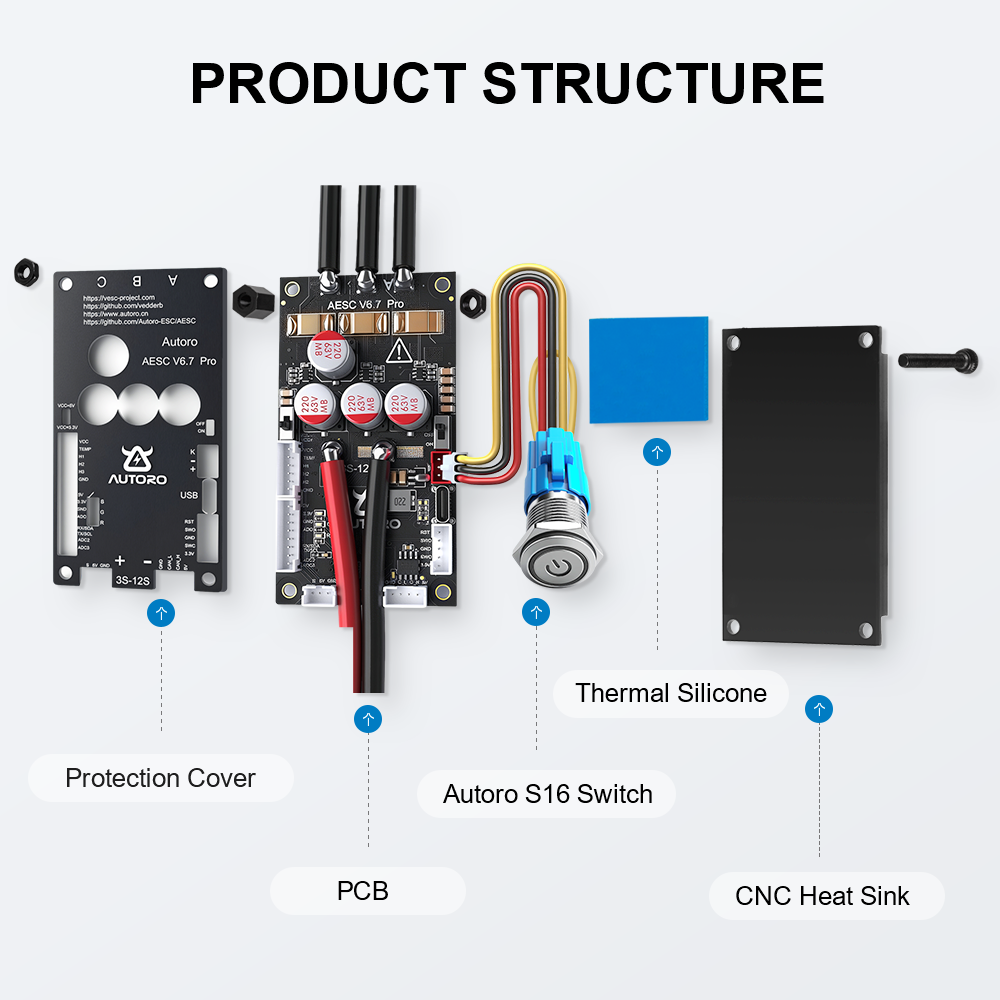

  Features a CNC-machined aluminum heat sink that is twice the size
  of the standard version, paired with a high-performance thermal interface. This Pro cooling solution ensures sustained, stable operation under maximum load, effectively managing heat for peak performance.

2.Enhanced Safety & Robust Operation

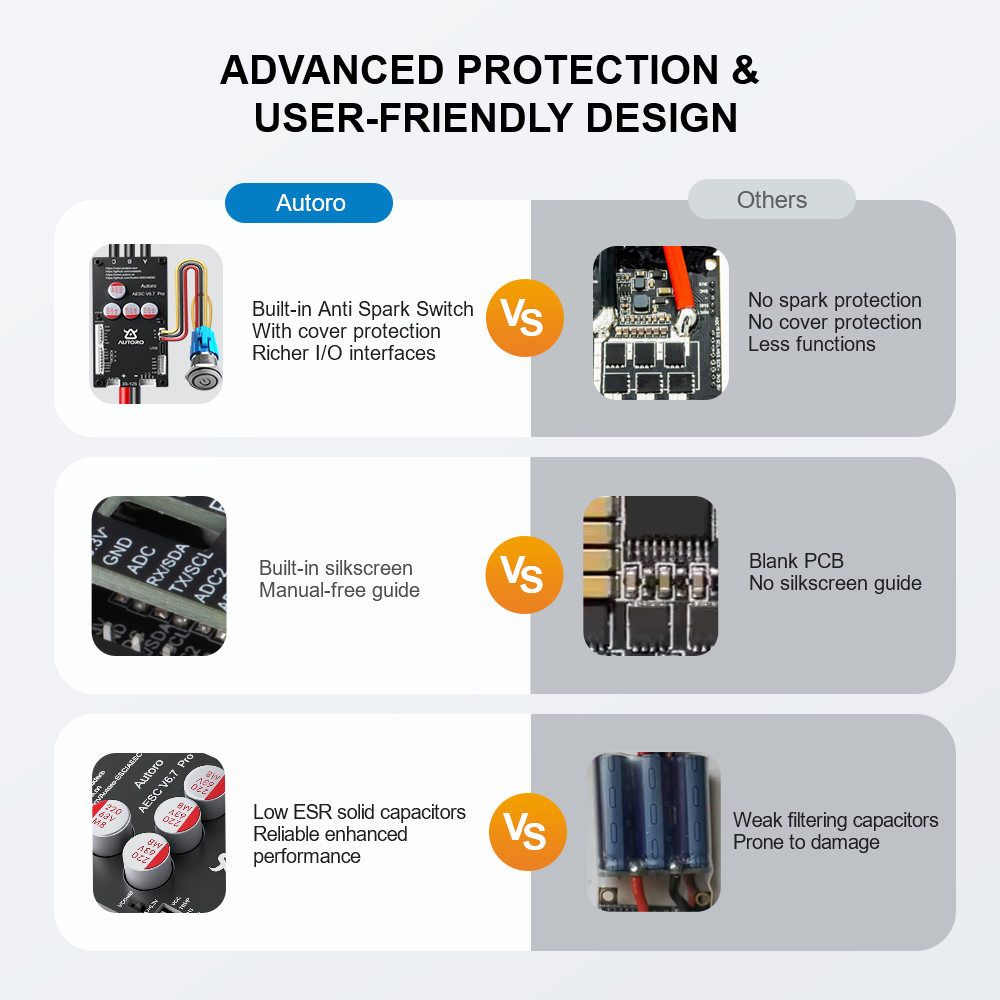

• Spark-Proof Safety Design:
  Incorporates a dedicated circuit to prevent sparking during power connection, enhancing safety and protecting both the drive and battery contacts for longer lifespan.
• Secure Power Control:

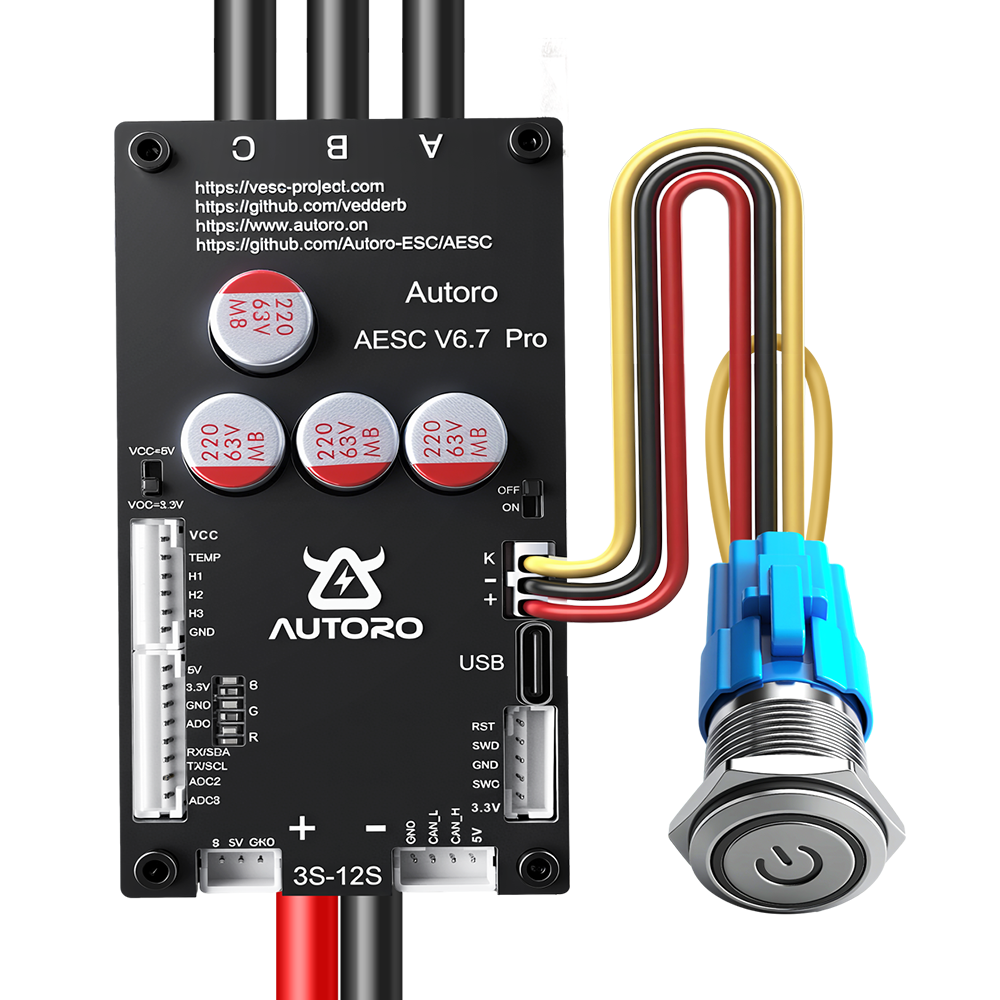

  Comes standard with an Autoro S16 self-locking metal button switch, enabling reliable one-touch power on/off operation in rugged environments.
• Intelligent Proactive Safeguards:
  All firmware-integrated protection protocols (voltage/current/temperature) are calibrated for the Pro’s higher performance envelope, ensuring safe operation within extended parameters.

3.Ultimate Compatibility & Smart Control

• Broad Compatibility, Seamless Integration:

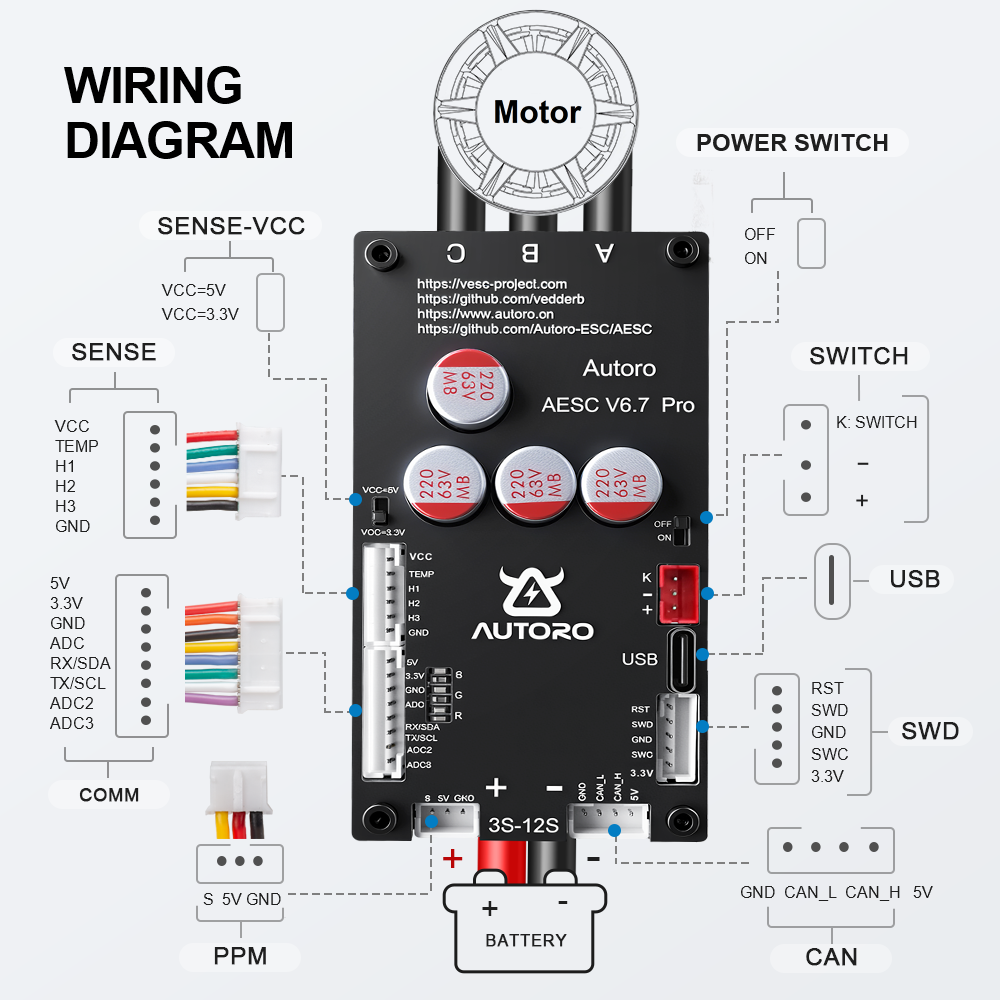

  A universal driver for Brushless DC (BLDC), Brushed DC, and IPM motors. Supports sensorless, sensored (Hall), and encoder-based operation, with multiple control interfaces (PPM, UART, ADC, CAN).
• Silent, Precise, and Fully Tunable:
  Utilizes advanced FOC sinusoidal drive for smooth, quiet operation. Fine-tune all parameters via the cross-platform VESC-Tool software for real-time monitoring, logging, and control.

4.High-Power Performance for Advanced Applications

• High-Current Drive Capability:
  Supports a maximum continuous current of 80 Amps, delivering robust starting torque and sustained high power output for challenging loads.
• Multiple Control Modes with Energy Recovery:
  Offers four core control types (Current, Duty-Cycle, Speed, Position) and integrated regenerative braking to capture kinetic energy, extending battery runtime.
